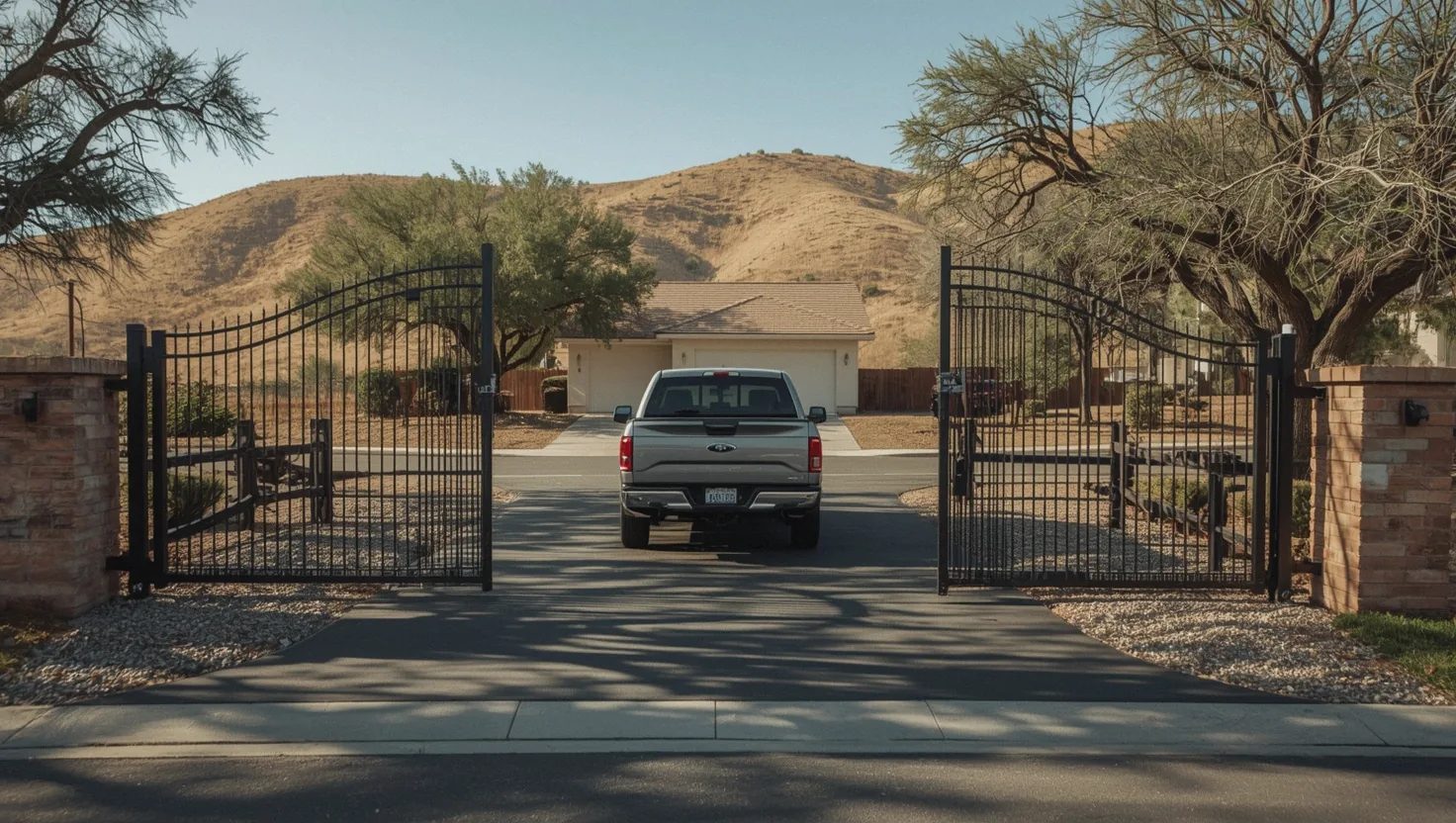

Driveway gate installation in Vacaville, CA. Serving Vacaville and all of Solano County, open 24 hours a day, seven days a week.
Vacaville Custom Metal & Electric Gates handles driveway gate installation in Vacaville, CA from the first measurement to the final safety test, and the driveway gate is the one people get wrong most often. It is the widest opening on the property, it carries the most weight, it takes the most wind, and it is the one gate that has to work every single day. Get the geometry wrong and no amount of hardware quality rescues it.
The three numbers that decide your driveway gate are the clear opening width, the grade change across the travel path, and the distance to usable power. We take all three on site before we quote, because those numbers decide swing versus slide, single versus bi-parting, and mains versus solar. Everything else, the material, the infill, the finish, is design on top of that. Our full range of work is on the Vacaville gate fabrication and installation homepage.
Driveway Gate Installation is one of our gate installation services, offered across Vacaville and Solano County.
A complete driveway gate installation includes:
It is time to replace or upgrade a driveway gate when:
Clear width, grade across the full travel path, post conditions, and the location of the property line and any right-of-way. This visit decides the design.
We find the nearest usable power and plan the conduit run, or price a solar package if a trench is impractical. On rural parcels solar is frequently the cheaper and better answer.
You approve drawings with real dimensions, infill spacing, finish and hardware before we cut steel. This is also the stage where HOA or historic design review gets satisfied.
Frame welded square in the shop, welds ground, then powder coated or galvanized and powder coated depending on where the gate is going.

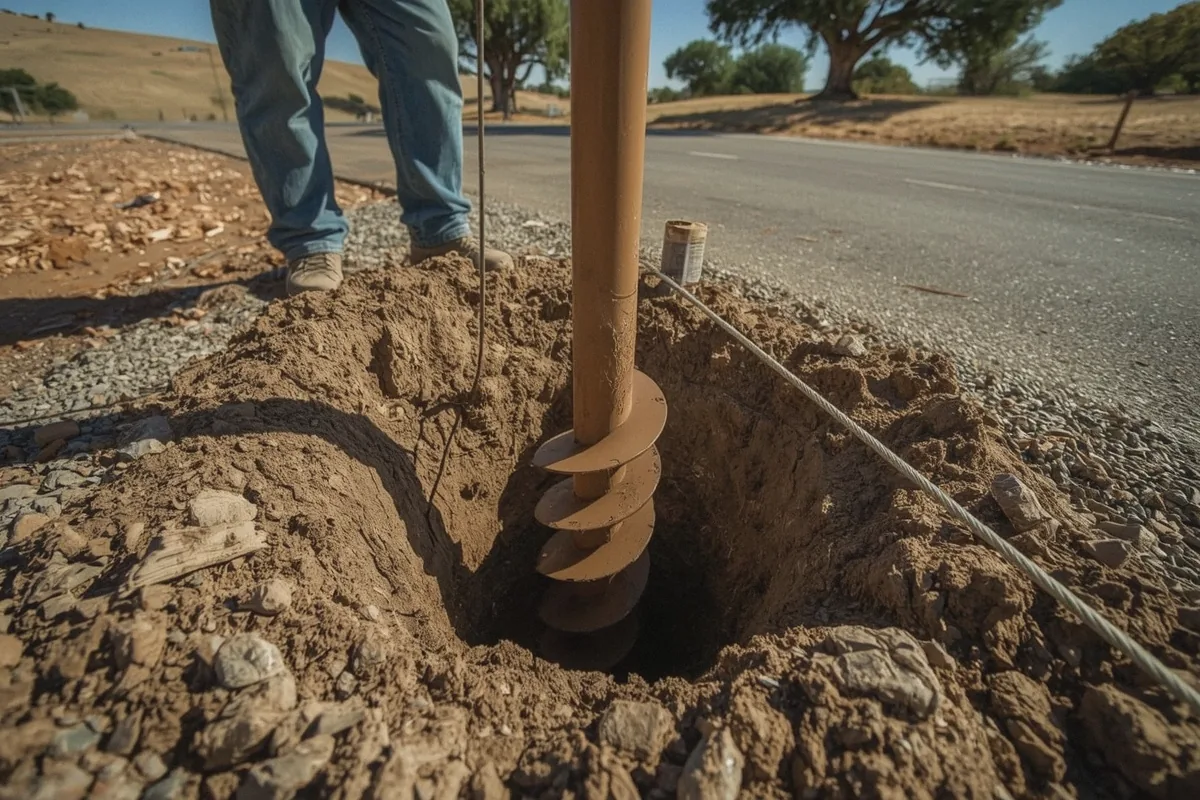

Footings poured to the engineered size, posts set plumb, gate hung, and hardware adjusted until it moves easily and latches without being lifted.
If powered: operator set, safety devices installed to UL 325 and tested by obstruction, exit detection installed, battery backup verified with mains cut, entry devices programmed.
Driveway gates come down to configuration first and style second. Here is what each configuration actually needs from your property.
| Configuration | Space required | Slope tolerance | Typical opening |
|---|---|---|---|
| Single swing | Arc room equal to the full opening width | Low | Up to about 16 feet |
| Bi-parting swing | Arc room equal to half the opening, on each side | Low | 12 to 24 feet |
| Rolling slide | Side room roughly equal to the opening, plus a clean ground track | High | 10 to 30 feet |
| Cantilever slide | Side room of roughly 1.5 times the opening, no ground track | Very high | 12 to 40 feet |
| Vertical pivot or lift | Minimal side room, significant headroom | High | Tight urban and commercial sites |
Published installation costs for driveway gates in this area run roughly $2,000 to $12,000. The spread is almost entirely configuration and power: a modest manual swing gate on flat ground with no automation sits at the bottom, and a wide automated cantilever slide gate with a long trench and a full entry system sits at the top.
What actually moves a driveway gate quote:
Vacaville driveway gates take a specific beating. We average about 21 days a year over 100 degrees, double what Fairfield sees, and that heat load cycles a steel frame daily and cooks operator electronics in an unshaded enclosure. The Delta breeze that cools the evenings loads solid infill panels hard, which is a structural and an operator-sizing problem. And a great many local driveways rise or fall across the opening for drainage, which is why we shoot the grade every time rather than assuming a swing gate will clear.
Most gate projects touch more than one of these. If you are not sure which applies, call us and we will tell you plainly, including when you need less than you thought.
You can also see every gate service we offer in Vacaville, read how we work, or get in touch.
Clear opening width, grade change across the travel path, and distance to usable power. We take all three on site before quoting because those three numbers decide swing versus slide, single versus bi-parting, and mains versus solar. A quote given over the phone from a photograph is a guess, and the guess gets corrected at your expense on installation day.
UL 325 requires at least two independent entrapment protection devices for each entrapment zone in each direction of travel. The operator's own force sensing is one of them and cannot be the only one. We add photo eyes or safety edges and prove the reversal by physical obstruction in front of you at handover.
Monday through Sunday, 24 hours. A failed driveway gate either traps your vehicles on the property or leaves the entrance standing open overnight, and neither waits politely for business hours. Most gate companies in this county publish weekday-only hours.
They measured the driveway and told me a swing gate would scrape before I ever asked. Ended up with a cantilever slide instead and it has not caught once. Whole thing was welded in their shop and hung in a day.Dana R.Vacaville · Driveway gate + automation
Our old yard gate had a residential opener on it and it burned out twice in a year. They replaced it with a proper continuous-duty unit and explained exactly why the first one kept failing. Two seasons, no issues.Marcus T.Fairfield · Commercial cantilever gate
We are in the downtown historic district so the design had to be approved. They drew it to the district's standard and it cleared first time. Galvanised it before the powder coat because of the salt air.Priya S.Benicia · Ornamental iron entry gate
Conditions change city to city across Solano County, from strait salt air to dry farmland. Each page covers what is different where you are, or you can explore our service areas in full.
Published ranges for this area run roughly $2,000 to $12,000 installed. A manual swing gate on level ground with simple picket infill sits near the bottom. A wide automated cantilever slide gate with a long power trench, ornamental infill and a full entry system sits at the top. We quote after measuring, not before.
Two to five weeks from approved drawings to installation for custom fabrication, driven mainly by the powder coating or galvanizing queue. Installation is typically one day, or two if we are trenching a long power run or coring through a finished concrete driveway.
Often yes. Gates and fences over six feet generally require a building permit, front yard height limits are tighter than side and rear, and a gate that swings toward a public right-of-way may need encroachment review. We confirm the requirement with the relevant city before quoting and handle the submittal.
We strongly advise against it and many jurisdictions will not permit it. A gate swinging into the public right-of-way is a hazard to pedestrians and passing vehicles. Where there is not enough room to swing inward, the correct answer is a slide gate, not an outward swing.
Solar. On long rural driveways in Dixon, Winters and the Vacaville foothills, running mains power hundreds of feet often costs more than the gate itself. We size the solar panel and battery from an honest daily cycle count, then size up from it, because an undersized solar gate is a gate that stops working in December.
Yes, and it also needs stronger gate hardware. Width increases leverage on the hinge or roller assembly and increases the wind area of the leaf. We size the operator for weight, span and duty cycle together, and we upgrade the gate hardware to match, because an underpowered operator destroys the gate before it destroys itself.
Free on-site estimate, honest specification, straight answers on permits. Call any hour.
